Wireless multi-brand bi-directional scan tool with ZVCI2 interface, CAN FD and DoIP
Model code: EZ7MU001 / EZ7VC001 Manufacturer: EZDS

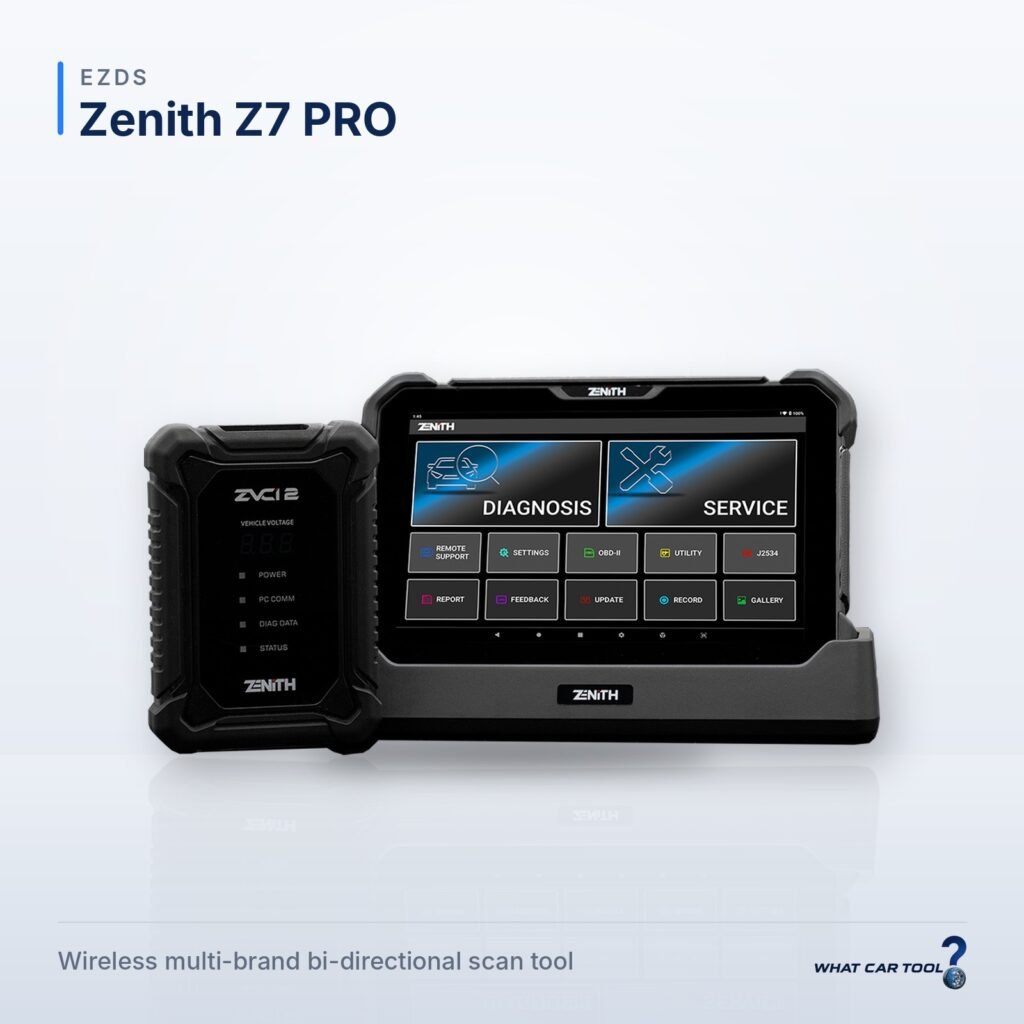

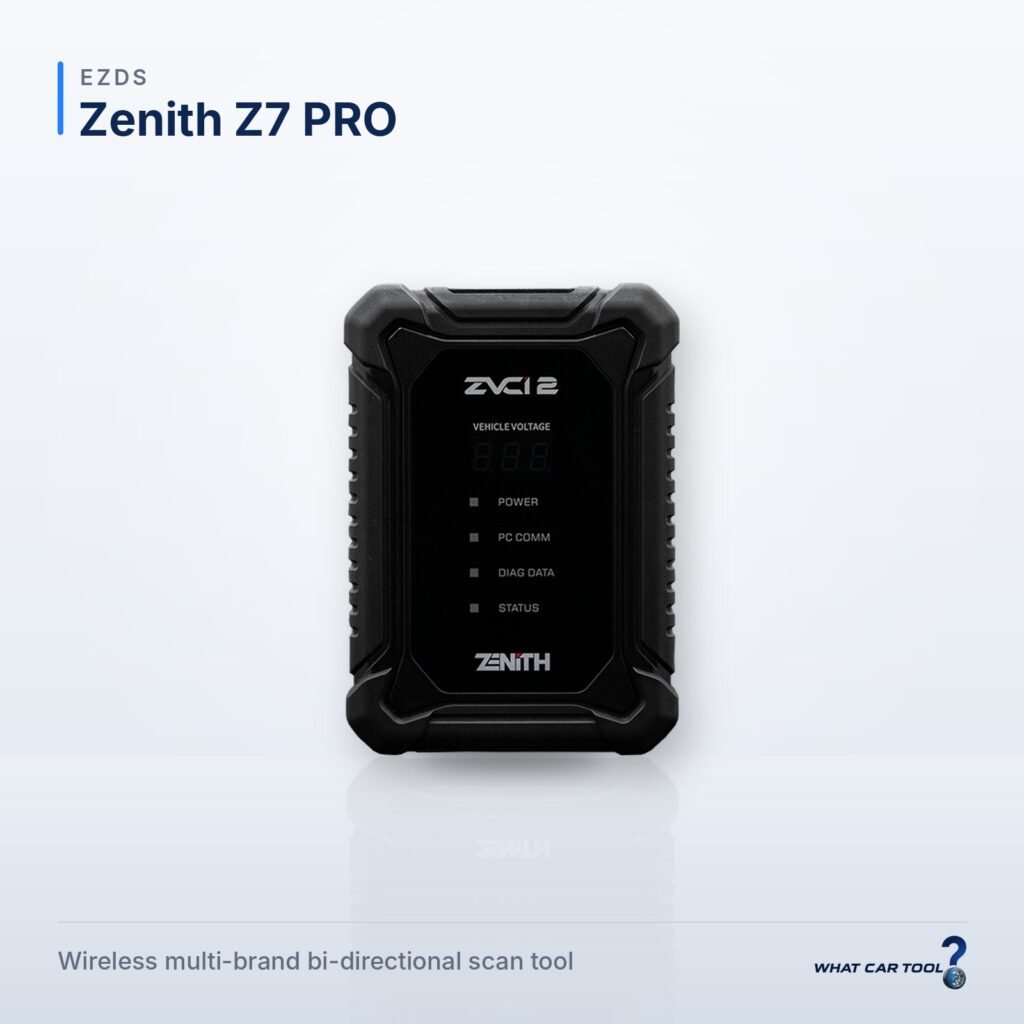

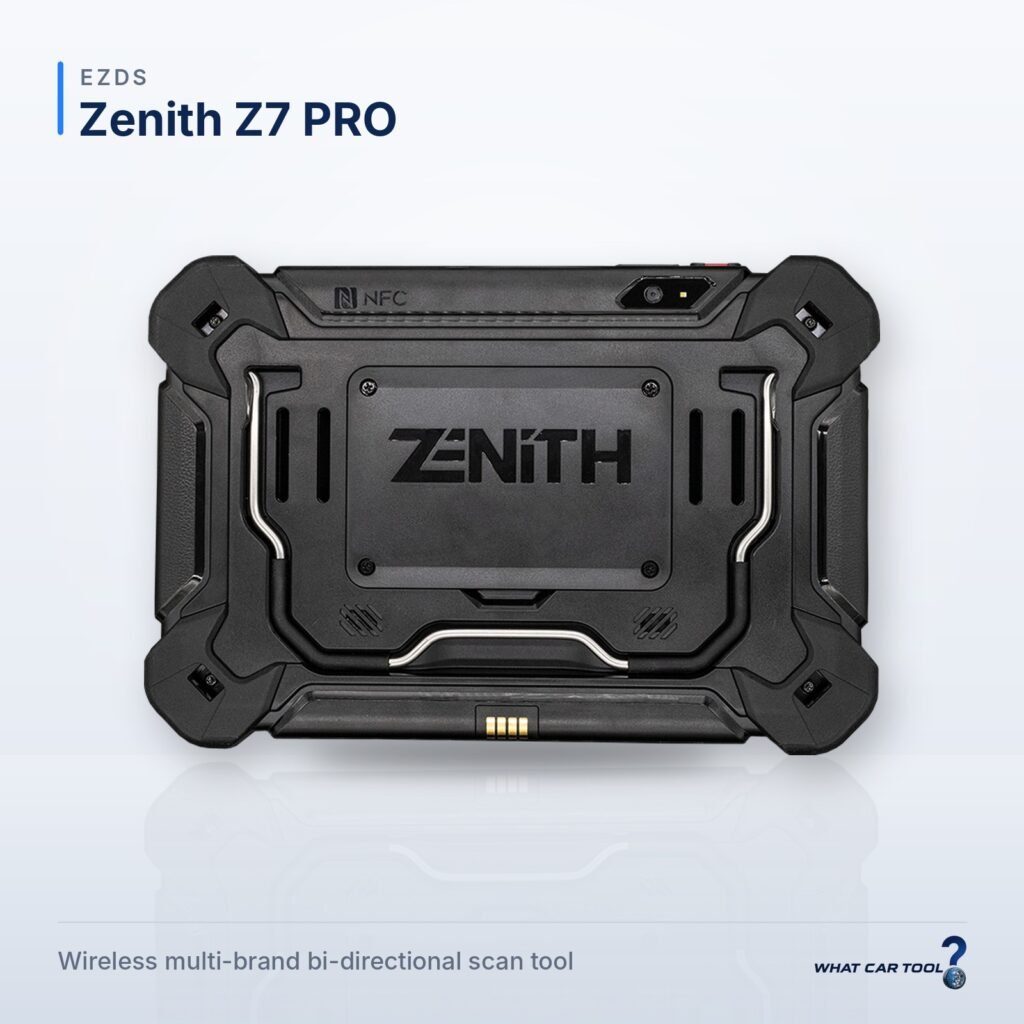

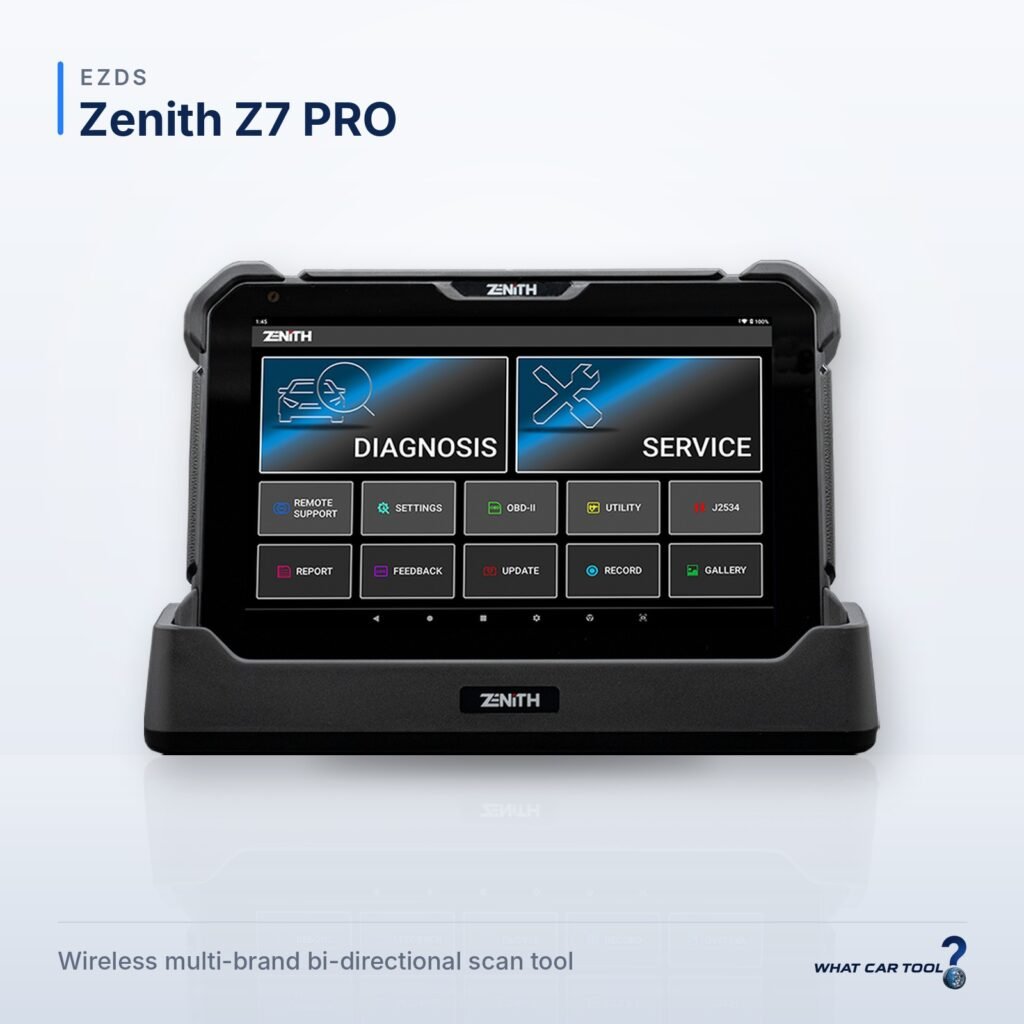

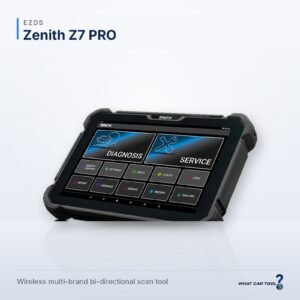

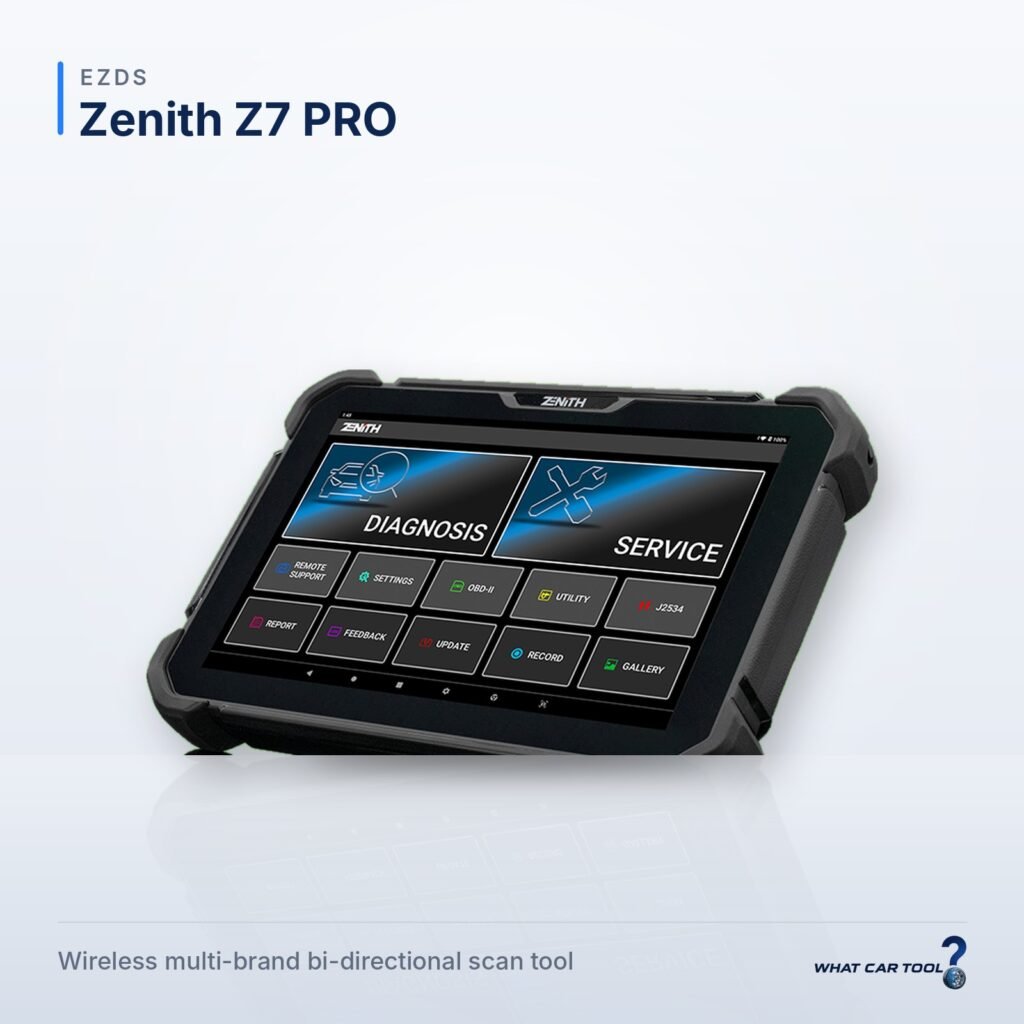

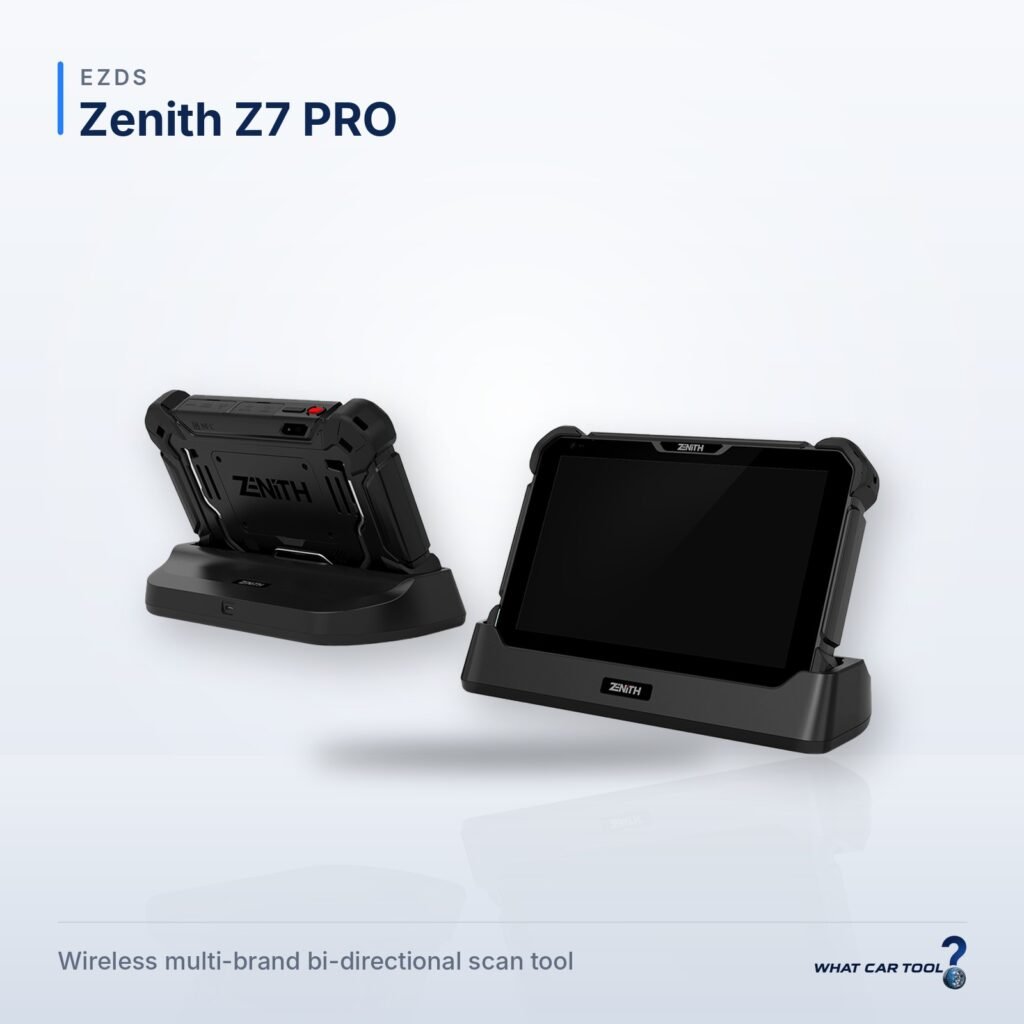

Zenith Z7 PRO is the flagship wireless multi-brand bi-directional scan tool from EZDS. It combines a 10.1-inch FHD Android 11 tablet (octa-core 2.2 GHz, 4 GB RAM, 64 GB storage, microSD up to 256 GB, 5800 mAh battery, 8 MP camera) with the ZVCI2 vehicle communication interface, which supports CAN FD and DoIP (bypass) and lets the tool act as a J2534 pass-thru device. Functions include ultra-fast automatic system search with VIN detection, topology scan, service functions, live data with graphing and multi-parameter comparison, actuation tests, full-text DTC descriptions with DTC search, pre- and post-scan reports (PDF, e-mail or Bluetooth printing), battery management data for EV and hybrid vehicles, Security Gateway access on newer Fiat and Chrysler models via AutoAuth, and bi-directional support for Asian light- to medium-duty 24 V trucks. The standard kit contains the tablet, ZVCI2, main DLC cable, charging cradle, AC/DC adapter set, USB cable, rear hand strap, carrying case and stylus. Optional OBD adapters for older vehicles are sold separately. Supported vehicles and functions depend on the installed software; check the manufacturer's vehicle coverage list.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| For which vehicle | Cars, Trucks |
| Connection with computer / tablet / phone | USB, Bluetooth, Wi-Fi |
| Other connection (details) | RJ45 Ethernet and NFC on the tablet |
| Vehicle power supply system | 12V, 24V |
| Supported protocols | CAN, CAN FD, DoIP, K-line, KWP2000, SAE J1850, J2534 standard API passthru |
| Other protocols (details) | CAN high/low/single speed, ISO 13400, ISO 11898, ISO 9141 and 9141-CARB, SAE J1708 / J1587 (heavy duty), Melco pull-down |
| Frequency of new updates | Regular software updates, plus urgent on-demand updates (manufacturer statement) |
| Menu language | English |
No compatibility data yet.
EZDS does not publish a list of supported makes, models or model years. The makes shown here come from the carline software list in EZDS distributor bulletins and the software-update screen, entered at make level from 1996 - check your VIN with the seller before buying. Which Service-tab functions (oil, EPB, SAS, battery reset, brake bleeding, ADAS) and special functions work depends on the carline and model; the manual states the list is predefined by each carmaker. Trucks and buses (Hino, Fuso, Isuzu, Hyundai, Kia, Foton, Tata, Mercedes) need the matching 24 V truck cable and have basic diagnostics only. Z7 PRO: J2534 pass-thru works over USB with the carmaker OEM software (OEM data is not included); topology scan and EV/hybrid battery data are only available on supported models. Not mapped to specific makes: hidden/customization features, key or immobilizer functions, ECU coding.
There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.
EZDS Co., Ltd. is a Seoul-based (South Korea) maker of automotive diagnostic scan tools. Its G-scan line (G-scan, G-scan 2, G-scan 3 and the Windows-based G-scan Tab) is known for in-depth diagnostics of Asian passenger cars and commercial vehicles, including dedicated Hyundai and Kia software. The newer Zenith Z series (Z7 PRO, Z7 LITE and Z5) offers multi-brand, bi-directional diagnostics with J2534 pass-thru, 12/24 V support and, on selected models, CAN FD and DoIP. EZDS sells through a network of dealers and distributors.
