OE-level 10.1" Android diagnostic tablet with CAN FD, DoIP and J2534
Model code: X-95 Pro Manufacturer: Udiag

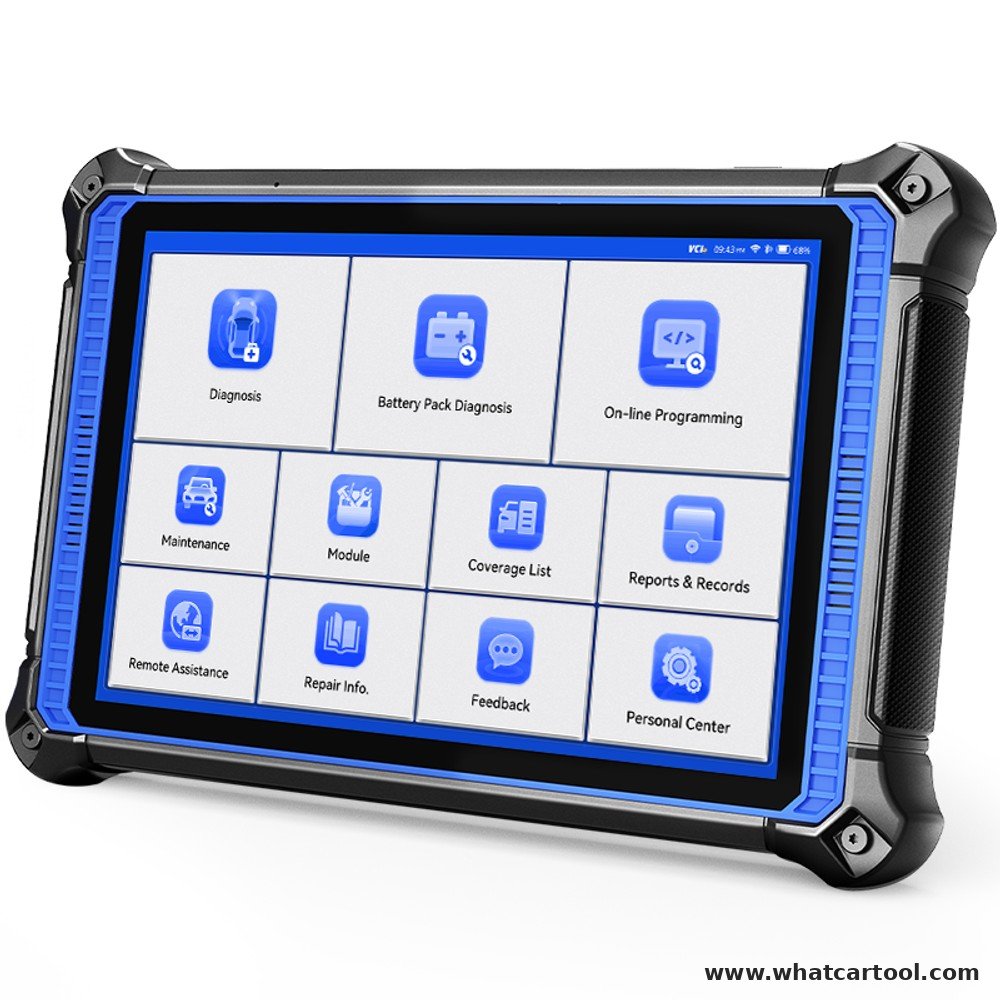

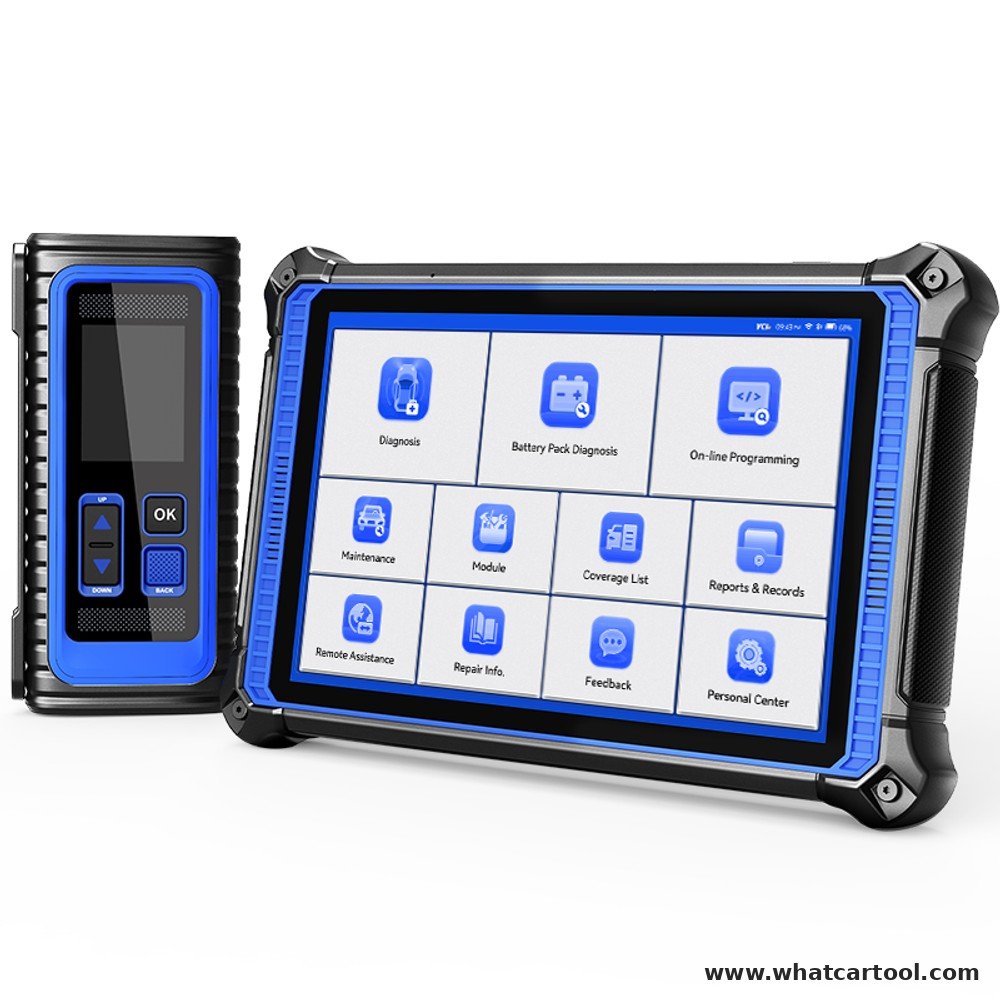

UDIAG X-95 Pro is the flagship OE-level full-system diagnostic tablet from UDIAG for professional workshops. It runs Android 10 on a 10.1" HD touchscreen (1280x800, quad-core 2.0 GHz, 4 GB RAM / 128 GB storage, 12,600 mAh battery, 13 MP camera) and talks to the vehicle through a wireless VCI with dual-band Wi-Fi.
Coverage: 130+ US, Asian and European passenger-car makes with Auto VIN. Optional expansion packages: HD950 heavy-duty module (150+ truck, bus and off-highway brands, 13 heavy-duty connectors, 9-36 V) and EV950 electric-vehicle module (74+ EV/hybrid brands, BMS and battery-pack analysis, 18 EV connectors, 2-year EV software licence). Both modules are sold separately.
Functions: access to all modules in all systems, read/clear codes, live data, freeze frame, ECU information, bi-directional active tests, adaptation, coding and security access, all 10 OBDII test modes, online programming for selected makes (e.g. Audi, BMW, Land Rover, Mercedes-Benz, Nissan, Porsche, Seat, Skoda, Subaru, VW), offline coding for Ford, guided functions for VW group and 41+ service functions (oil reset, EPB, SAS, DPF, injector coding, battery registration, AT adaptation and more). Supports CAN FD, DoIP and J2534 pass-thru. Immobilizer and EEPROM functions are optional. Remote support, Wi-Fi printing.
Add-on hardware: oscilloscope (OS100), videoscope, TPMS tool (T10), battery tester and ADAS calibration kits (ADAS-A / ADAS-B).
Mileage-related functions may only be used to recalibrate a replacement or repaired instrument cluster to the vehicle's true mileage. Function availability depends on make, model, year and installed software packages. The user manual (PDF) is available on the UDIAG product page (udiagtech.com). OEM dealer software and licences are not included.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Cars, Trucks |
| What programs does it work with? | UDIAG expansion modules: HD950 Heavy Duty Module, EV950 EV Diagnostic Module, OS100 oscilloscope, TPMS T10, ADAS-A / ADAS-B calibration kits. |
| Connection with computer / tablet / phone | Bluetooth, Wi-Fi, USB |
| Other connection (details) | Wireless VCI; dual-band Wi-Fi for updates, remote support and printing |
| Vehicle power supply system | 12V, 24V |
| 24V adapter | A 24V adapter is required |
| 24V software | Separate software must be purchased |
| Supported protocols | K-line, KWP2000, SAE J1850, CAN, J1979, UDS, CAN FD, DoIP, J2534 standard API passthru |
| Months of free updates | 24 |
| Subscription model (description) | 2 years of free software updates via Wi-Fi; after that a paid renewal (price not published by UDIAG). EV950 includes a 2-year EV software licence. |
| Menu language | English |
| Other language (details) | Multi-language interface (list not published by UDIAG) |
No compatibility data yet.
Full-system OE-level diagnostics for 130+ passenger-car makes (US, Asian, European) with bi-directional tests, coding, adaptation, topology, online programming (Audi, BMW, Land Rover, Mercedes-Benz, Nissan, Porsche, SEAT, Skoda, Subaru, VW), J2534, CAN FD and DoIP, and 41 service functions. Immobilizer / smart-key and EEPROM (odometer, PIN reading) are optional paid packages. Heavy-duty trucks (150+ brands) only with the HD950 module and EV / hybrid battery diagnostics (74+ brands) only with the EV950 module – both sold separately. Security gateway: FCA with AutoAuth or UDIAG access package; UDIAG also sells VAG, Mercedes-Benz and Renault/Dacia SGW access packages. Functions not entered per make: gateway module data calibration, rain/light sensor, ECU reset, FRM matching. Model years are not published by UDIAG; entries start at 1996 (EU-only makes 2001; diesel EOBD 2004). Function availability depends on make, model, year and installed control modules – check your VIN with UDIAG before buying. OEM dealer software and licences are not included.
