Immobiliser and key programming tablet for locksmiths (OBDPROG M501)
Model code: M501 Manufacturer: OBD prog
OBDPROG Codify Monster 501 (also sold as OBDPROG M501) is an all-in-one immobiliser programming tablet designed for locksmiths. It runs Android on a 5-inch touch screen and includes an external programmer unit for EEPROM work.
Functions (coverage depends on make, model and year):
- Program new keys and erase keys
- Program remote controls
- Read the number of programmed keys
- Read the immobiliser PIN code
- Read EEPROM chips (with the P001 programmer unit and C001/C002 circuit boards)
- OBD2/EOBD diagnostics
OBDPROG publishes the vehicle coverage list on obdprog.com. Check your vehicle before buying.
Updates: online one-click updates, about every 30 days; 1 year of free updates.
Specifications: Android 5.1.1, RK3128 quad-core ARM Cortex-A7, 5.0" 800x480 capacitive touch screen, Wi-Fi, 16 GB storage plus micro SD slot (up to 32 GB), 2500 mAh rechargeable lithium-polymer battery, working temperature -20 to 55 °C, about 458 g, 220 x 115 x 28 mm.

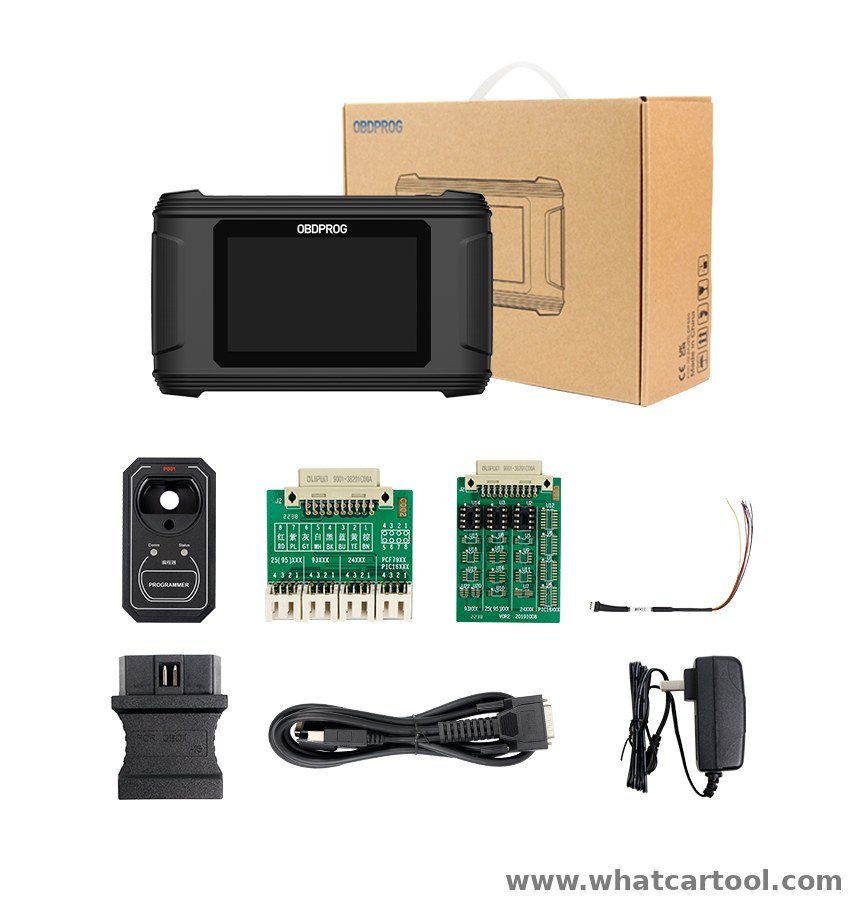

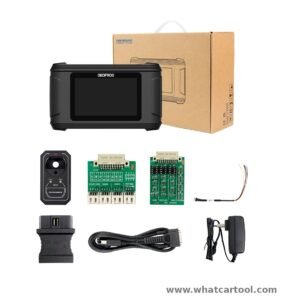

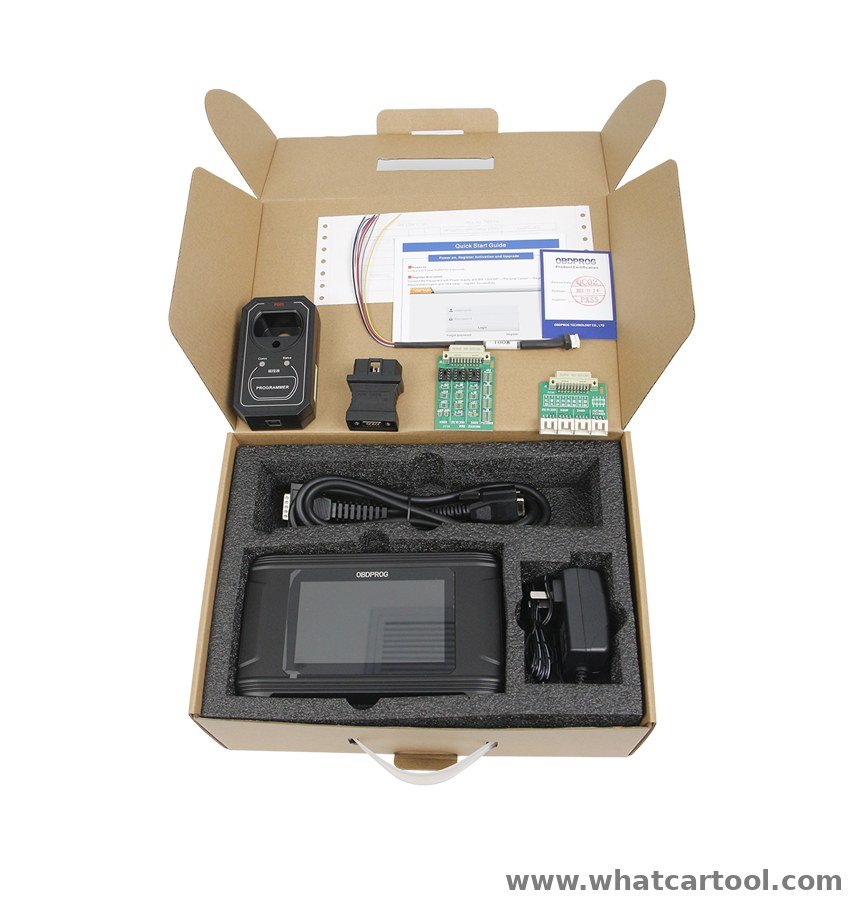

In the box: main unit, main cable, OBD2-16 connector, KIA-20, HONDA-3 and HYUNDAI-10 adapters, P001 programmer unit, C001/C002 circuit boards, W001 cable, charger, carry box, quick start guide.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Cars |
| Price (USD) | $423 – $517 |
| What programs does it work with? | Pre-installed OBDPROG immobiliser software (Android). No PC needed. |
| Connection with computer / tablet / phone | Wi-Fi |
| Other connection (details) | Wi-Fi for online updates; connects to the car via OBD2 and brand adapters. |
| Vehicle power supply system | 12V |
| Supported protocols | J1979 |
| Other protocols (details) | OBD2/EOBD; brand-specific immobiliser protocols are not listed by the manufacturer. |
| Frequency of new updates | About every 30 days |
| Months of free updates | 12 |
| Subscription model (description) | 1 year of free online updates is included. After that the tool keeps working with the last installed software; further updates can be bought. |
| Menu language | English, German, French, Spanish, Polish, Italian, Portuguese |
No compatibility data yet.
How this compatibility list was prepared
The vehicle list for the OBDPROG Codify Monster 501 was compiled from the manufacturer's own vehicle-coverage spreadsheets (the EU, USA and FULL packages). These contain identical files, so WhatCarTool shows one combined list, with no separate EU, USA or FULL versions. All listed functions are included in the device price.
The manufacturer's data was matched to the WhatCarTool vehicle database. Model years follow the manufacturer's data: an open-ended year ("2010-") is applied until the end of production of that generation, including facelifts, and a year with a minus sign ("-2007") is applied to that specific facelift up to the stated year. Where the manufacturer gives no model year, the vehicle is listed at model level and marked "Model year not specified by OBDPROG – check before buying".
Some vehicles are listed in the manufacturer's files under a different brand or name than the one WhatCarTool uses, for example some vans appear under Fiat. These entries carry a note stating how OBDPROG lists them. A few vehicles from the manufacturer's files could not be matched to a model in our database and are not shown here, so a missing vehicle does not necessarily mean it is unsupported. Please check with the manufacturer before buying.
