Instrument cluster calibration and oil service reset tablet
Model code: M500 Manufacturer: OBD prog
OBDPROG Doctor M500 is an Android-based 5-inch diagnostic tablet made for instrument cluster calibration and oil service reset. It is aimed at repair workshops and quick-service garages.
Main functions:
- Instrument cluster calibration via OBD2: read the stored mileage, write the mileage after a cluster replacement or repair, back up and restore cluster data.
- Oil / service interval reset.
- OBD2/EOBD engine diagnostics: read and clear fault codes, turn off the MIL (check engine) lamp.
Coverage depends on the vehicle and the cluster type, not only on the car model. Some clusters are not supported (for example VAG cars with Johnson Controls clusters and virtual/digital cockpits). OBDPROG publishes a coverage list (Basic and Full versions) on obdprog.com, and dealers can check a specific car before purchase.
Legal note: mileage correction is only allowed when the reading has to be set after an instrument cluster replacement or repair. Changing a vehicle's recorded mileage to mislead a buyer is illegal in most countries.
Updates: online one-click updates, new software released about every 15 to 30 days; 1 year of free updates.
Specifications: Android 5.1.1, RK3128 quad-core ARM Cortex-A7, 5.0" 800x480 capacitive touch screen, Wi-Fi, 16 GB storage plus micro SD slot (up to 32 GB), 2500 mAh rechargeable lithium-polymer battery, working temperature -20 to 55 °C, about 458 g, 220 x 115 x 28 mm.

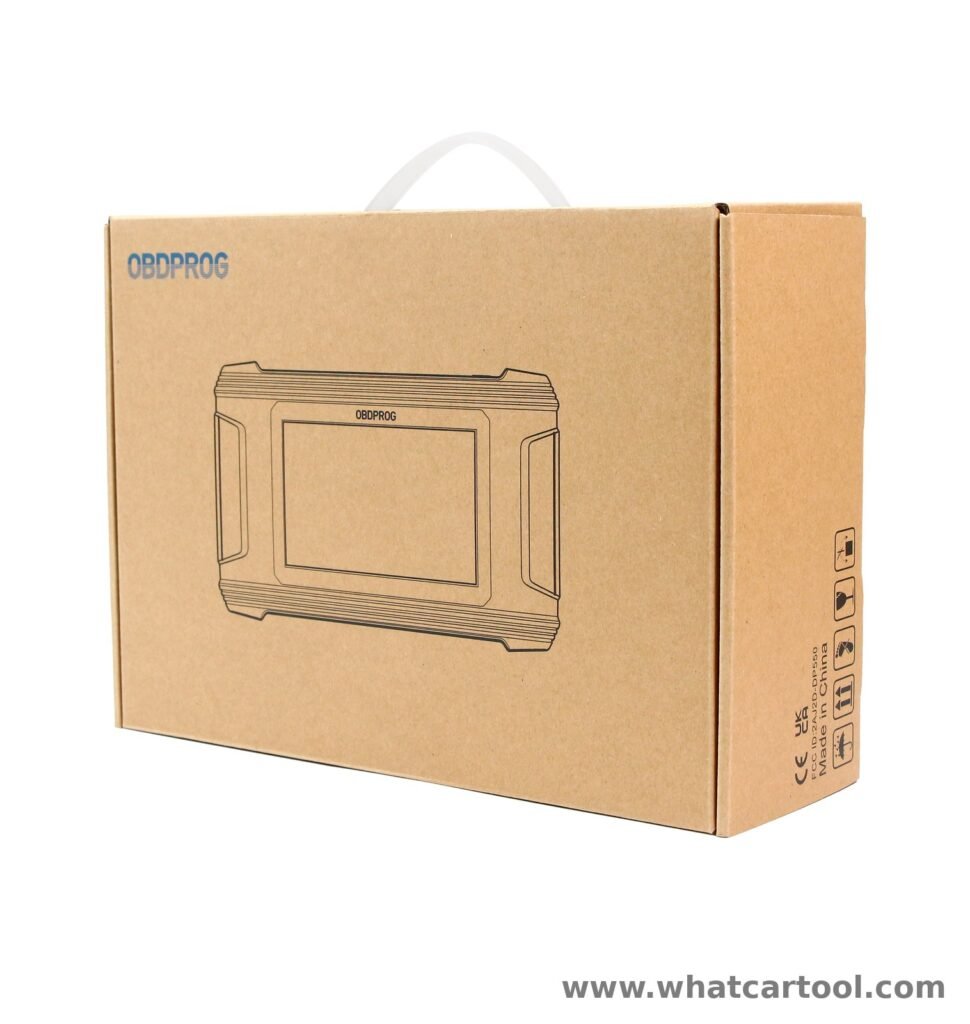

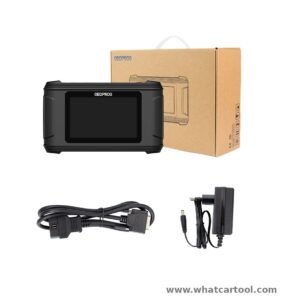

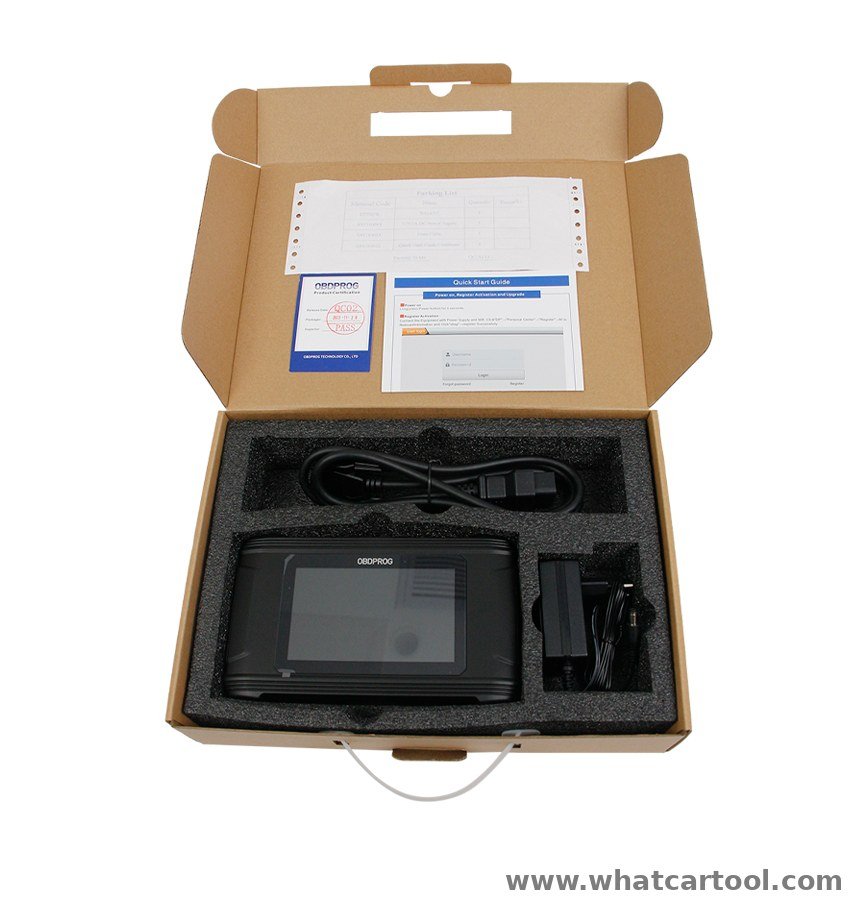

In the box: main unit, main cable, charger, carry box, quick start guide; multi-function jumper optional.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Cars |
| Price (USD) | $395 – $483 |
| What programs does it work with? | Pre-installed OBDPROG software (Android). No PC needed. |
| Connection with computer / tablet / phone | Wi-Fi |
| Other connection (details) | Wi-Fi for online updates; connects to the car through the OBD2 main cable. |
| Vehicle power supply system | 12V |
| Supported protocols | J1979 |
| Other protocols (details) | OBD2/EOBD; brand-specific cluster protocols are not listed by the manufacturer. |
| Frequency of new updates | About every 15–30 days |
| Months of free updates | 12 |
| Subscription model (description) | 1 year of free online updates is included. After that the tool keeps working with the last installed software; further updates can be bought. |
| Menu language | English, German, French, Spanish, Polish, Italian, Portuguese |
No compatibility data yet.
Compatibility disclosure – OBDPROG Doctor M500
This list was built by WhatCarTool from the manufacturer's coverage files (Basic, Standard and Full packages). The manufacturer does not publish one single list, so please read the notes below before buying.
• Packages. Coverage is listed for the lowest package that contains the vehicle. Vehicles from the Basic package are included in the device price; vehicles that need the Standard or Full package are marked with the "$ optional" flag.
• Model years. An open range such as "2010-" means from that year to the end of that model generation, including facelifts. A range with a minus, such as "-2007", means that facelift only. Where the manufacturer gave no model year, the vehicle is listed at model level with the note "Model year not specified by OBDPROG – check before buying".
• What is not listed. Entries that are control modules or dashboard codes rather than a car model, entries without a model name, and models we could not match to a vehicle in our database are left out. Some models appear under a different make or name in the manufacturer's files; we list them under the make they were sold under.
• EEPROM and Flash. The manufacturer's files mark EEPROM and Flash read/write support but do not explain exactly what is read or written. Ask the manufacturer for details before relying on these functions.
• Mileage. Mileage correction is for legal use only, for example repair after a replaced instrument cluster.
The data comes from the manufacturer and is not verified by WhatCarTool.
There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.
AUTOTOP Technology Co., Limited is a Hong Kong-based developer, manufacturer and seller of automotive electronics and diagnostic tools, sold under the registered OBDPROG trademark. Its own R&D team designs industrial-grade hardware and software for immobiliser and key programming, instrument cluster calibration, service resets (oil, EPB, battery) and motorcycle diagnostics. Best-known products include the Codify Monster 501 (M501) key programmer, the Doctor M500 tablet, the MOTO 100 motorcycle scanner and the MT-series handheld tools. Most tools are updated online with a one-key upgrade. Office: Unit B8, 7/F Shatin Industrial Building, 22-28 Wo Shui Street, Sha Tin, New Territories, Hong Kong.
