Advanced diagnostic tablet with topology mapping, J2534 ECU programming, coding and 40+ services
Model code: EvoScan UltraS Manufacturer: Otofix

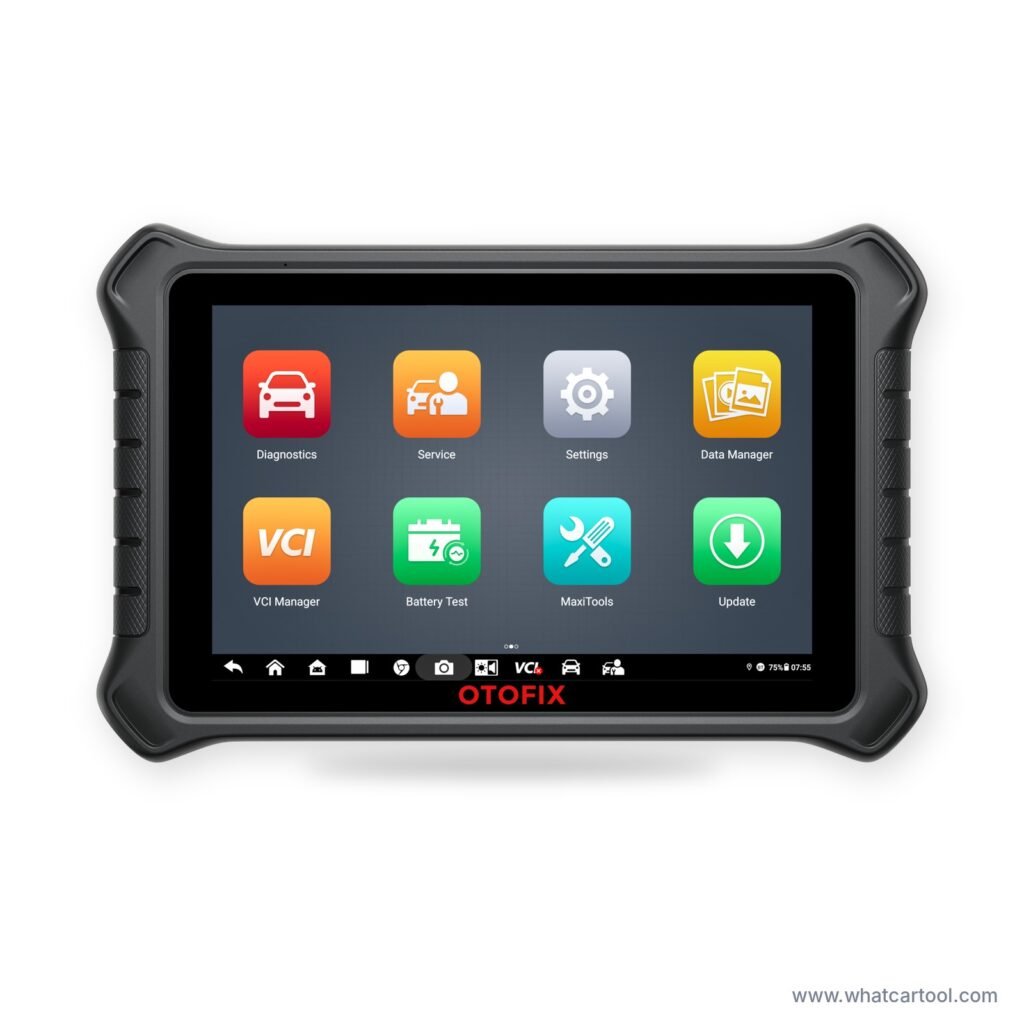

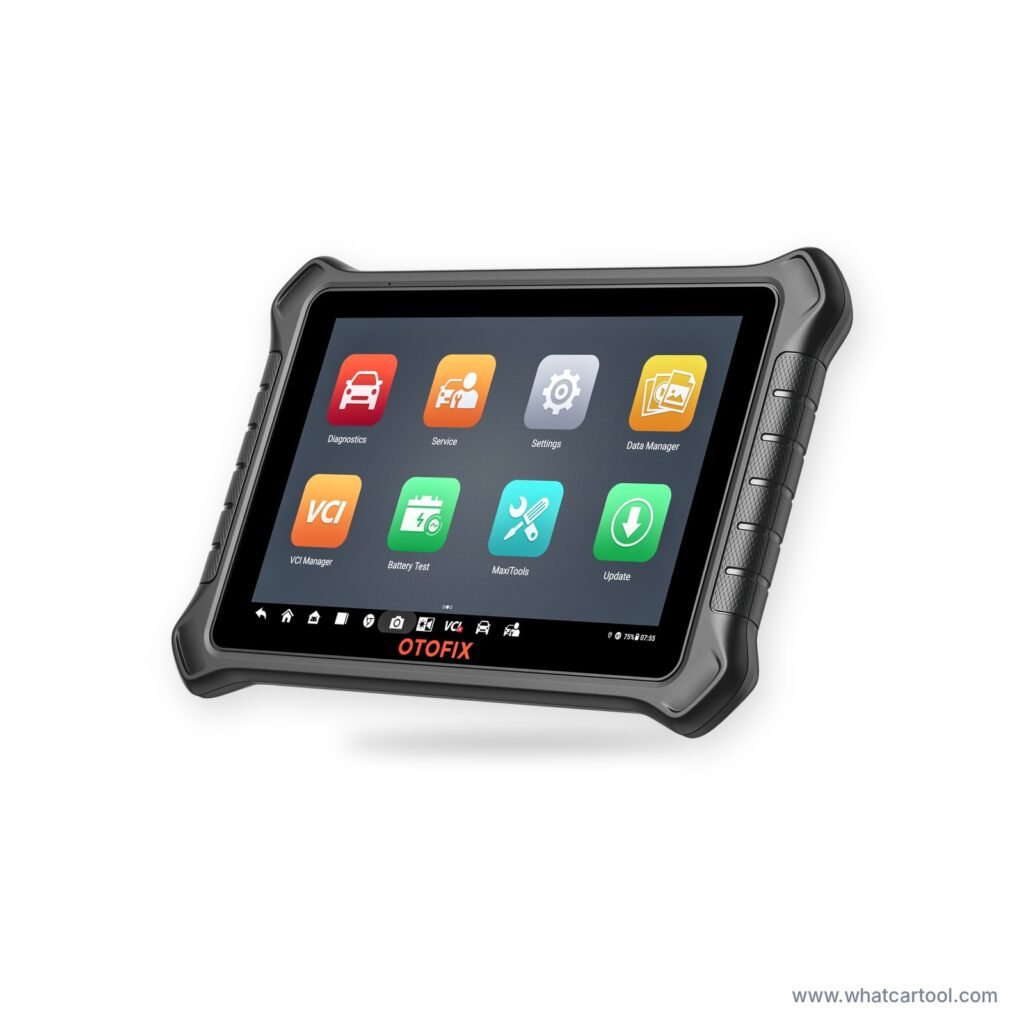

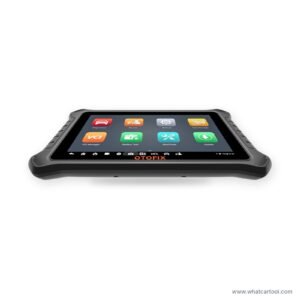

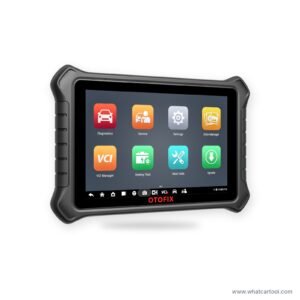

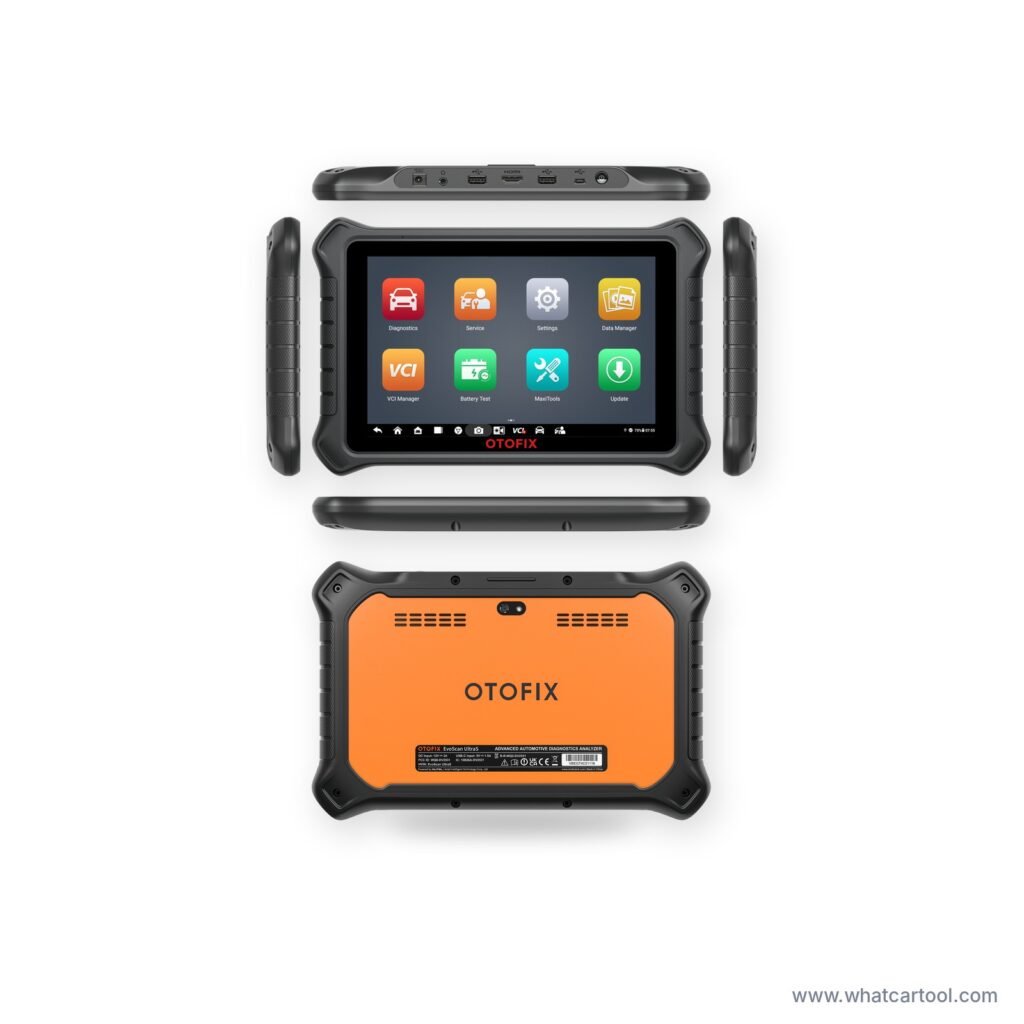

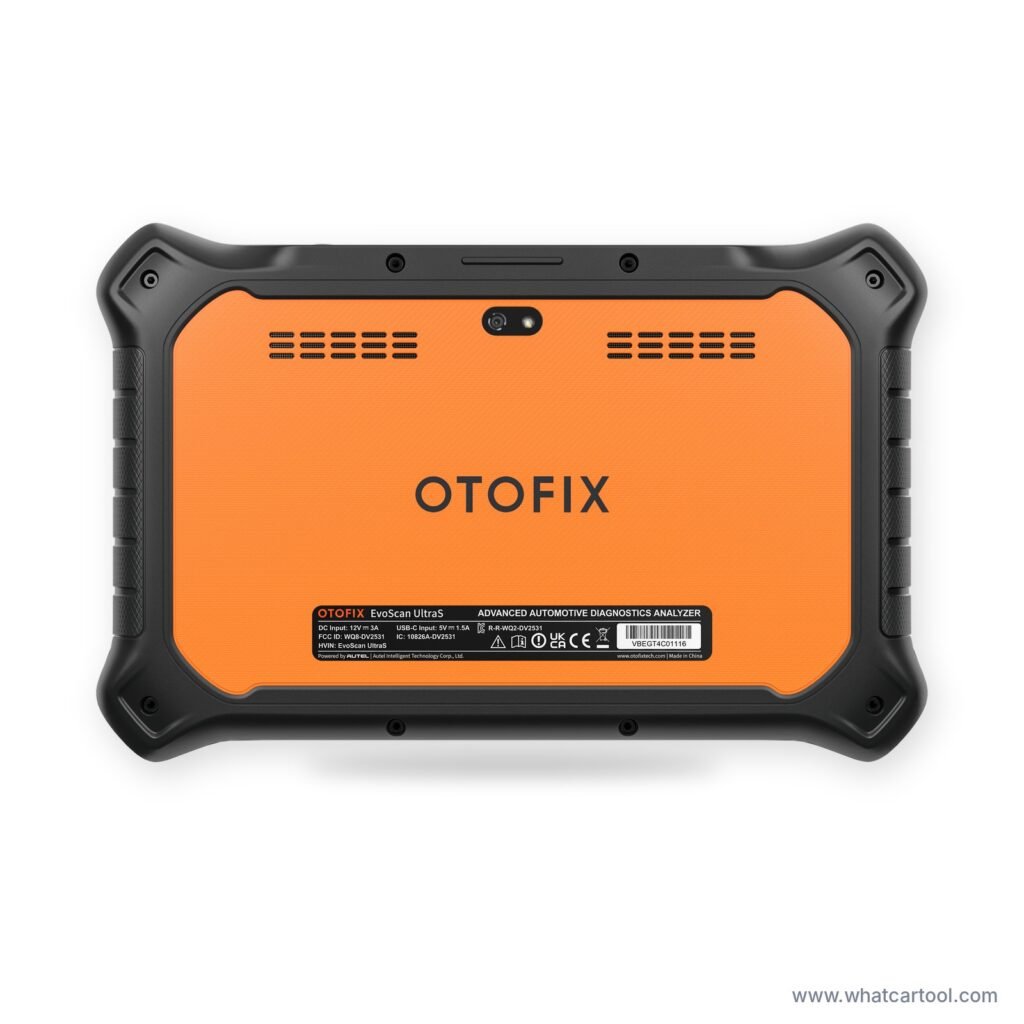

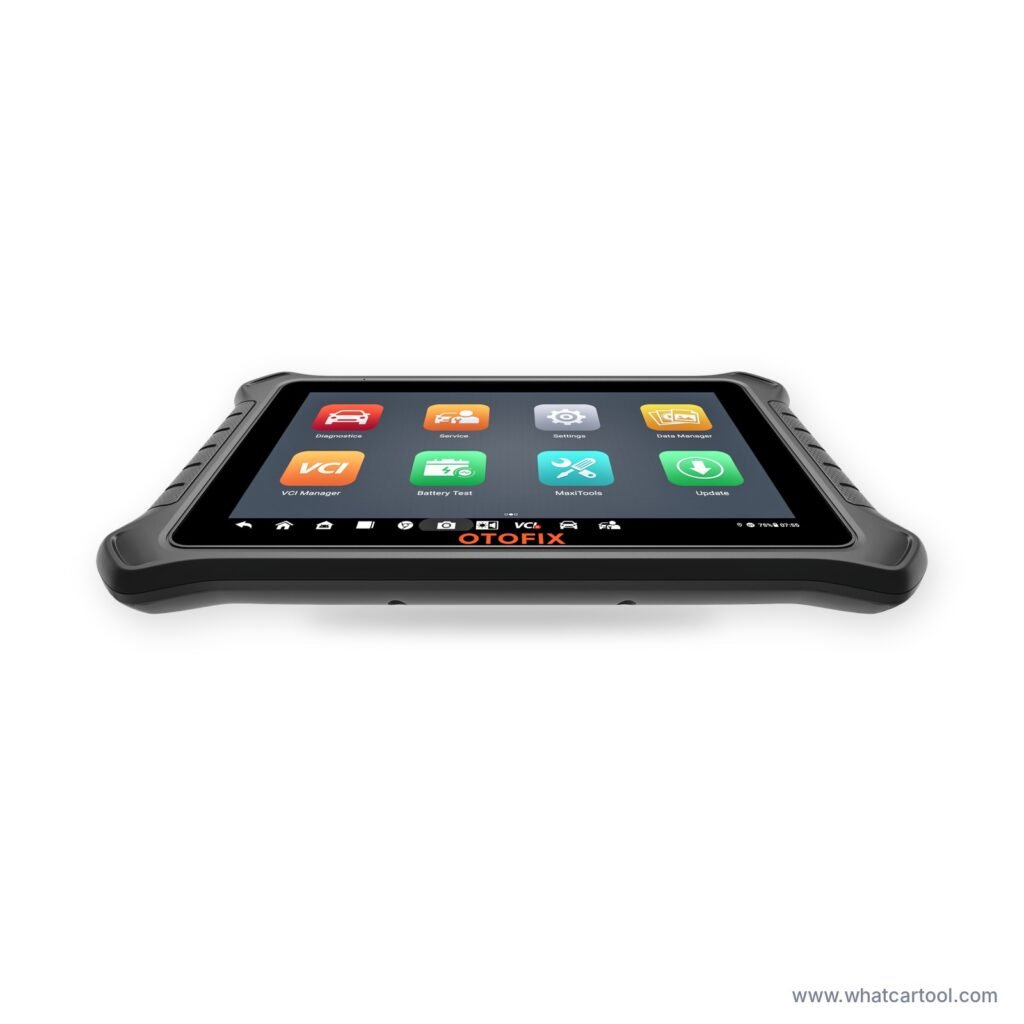

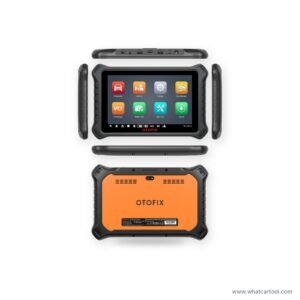

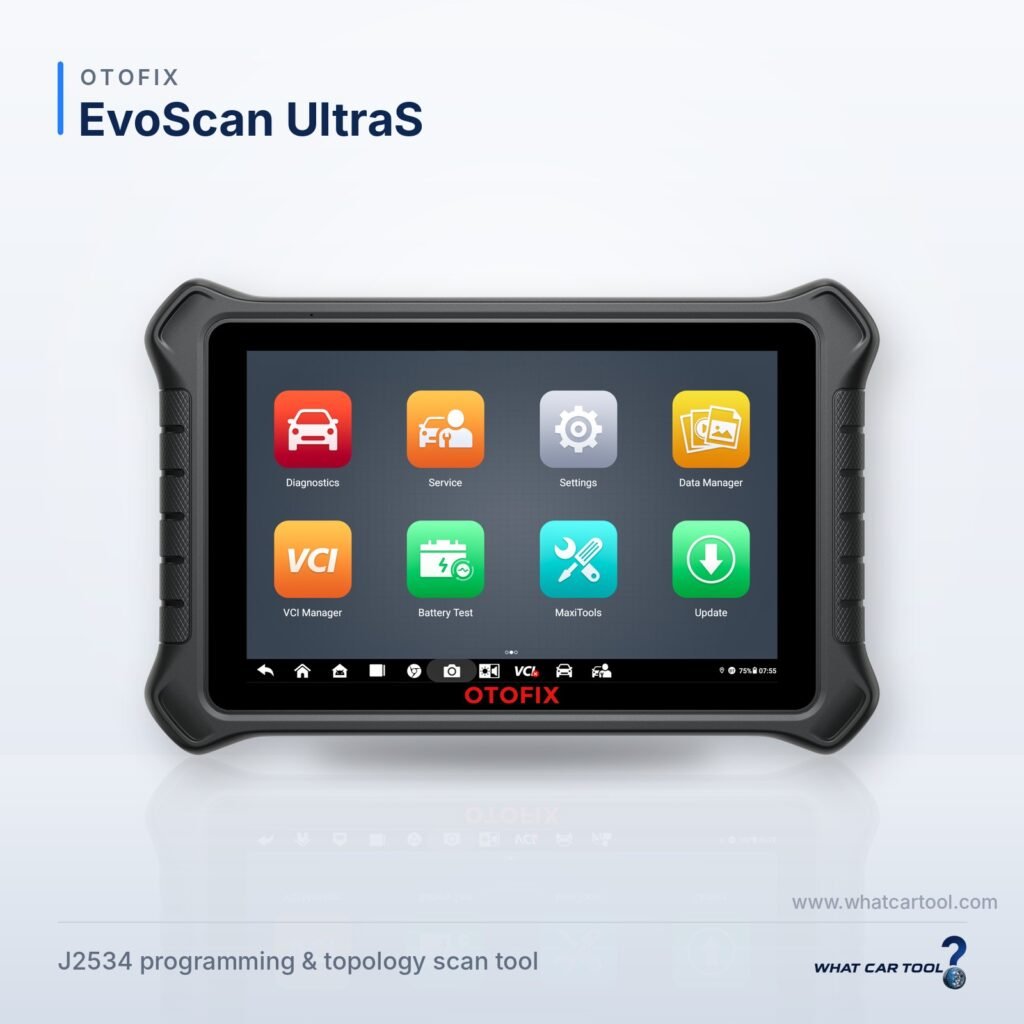

The OTOFIX EvoScan UltraS (2026) is an advanced Android diagnostic tablet with a Bluetooth V1 VCI for workshops and mobile technicians. Topology mapping shows the vehicle network and module status in colour; one tap opens the DTCs of a module. Autoscan 2.0 covers 150+ brands and 15,000+ models (passenger cars, light-duty fleets, select medium-duty vehicles and supercars, model year 2000+).
J2534 programming and ECU coding (reprogramming of supported ECUs, configuration changes), bi-directional active tests (injectors, throttle, windows, A/C compressor and more) and 40+ service functions (oil reset, EPB, SAS calibration, airbag reset and more). Protocols: D-PDU, J2534, RP1210, CAN FD and DoIP. FCA (2018+) Secure Gateway access requires your own paid AutoAuth account; Renault SGW access where supported by the software.
Hardware: lightweight one-hand design, fast touchscreen, 11600 mAh battery (up to 24 h). The full user manual (34 MB archive) is available on otofixtech.com.
Vehicle coverage and functions depend on make, model, year, region and software version - check your VIN with OTOFIX (service@otofix.store) before buying. OEM software and licences are not included.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Cars |
| Price (USD) | $1,979 – $2,419 |
| Connection with computer / tablet / phone | Bluetooth, Wi-Fi, USB |
| Other connection (details) | Bluetooth V1 VCI to the vehicle; J2534 pass-thru |
| Vehicle power supply system | 12V |
| Supported protocols | CAN, CAN FD, DoIP, J1979, J2534 standard API passthru, RP1210 API |
| Other protocols (details) | D-PDU |
| Frequency of new updates | Regular online updates via Wi-Fi |
| Months of free updates | 24 |
| Annual cost (USD) | 469 |
| Subscription model (description) | Amazon listing: 2-year free update. Renewal: OTOFIX EvoScan Ultra One Year Update Service, USD 469 at otofix.store. |
| Menu language | English |
| Other language (details) | Multi-language (list not published) |
| Warranty (months) | 12 |
| Warranty details (optional) | OTOFIX one-year limited warranty |
No compatibility data yet.
OTOFIX EvoScan UltraS: OTOFIX EvoScan Ultra coverage list (same data as D1 Max2) plus topology mapping and J2534 pass-thru programming (OEM software and subscriptions bought separately). Trucks listed by OTOFIX are entered as truck makes; 24 V vehicles may need an adapter. Dynapac construction equipment (CA / CC rollers): only basic diagnostics are entered - the OTOFIX list for Dynapac shows passenger-car functions that do not apply to these machines. Compatibility entered from the public OTOFIX Vehicle Coverage database (otofixtech.com, October 2026), summarised per make: a function is listed when OTOFIX shows it for at least one model of the make, so availability depends on model, year, engine and installed control modules - check your VIN with OTOFIX before buying. Very large makes were read up to 50,000 coverage rows, so rare functions of some models may be missing. Not entered: Chinese joint-venture / market versions (e.g. Beijing Hyundai, FAW-VW, SAIC-VW, Buick China) and Iranian makes. FCA vehicles 2018+ need your own paid AutoAuth account. OEM software and licences are not included.
