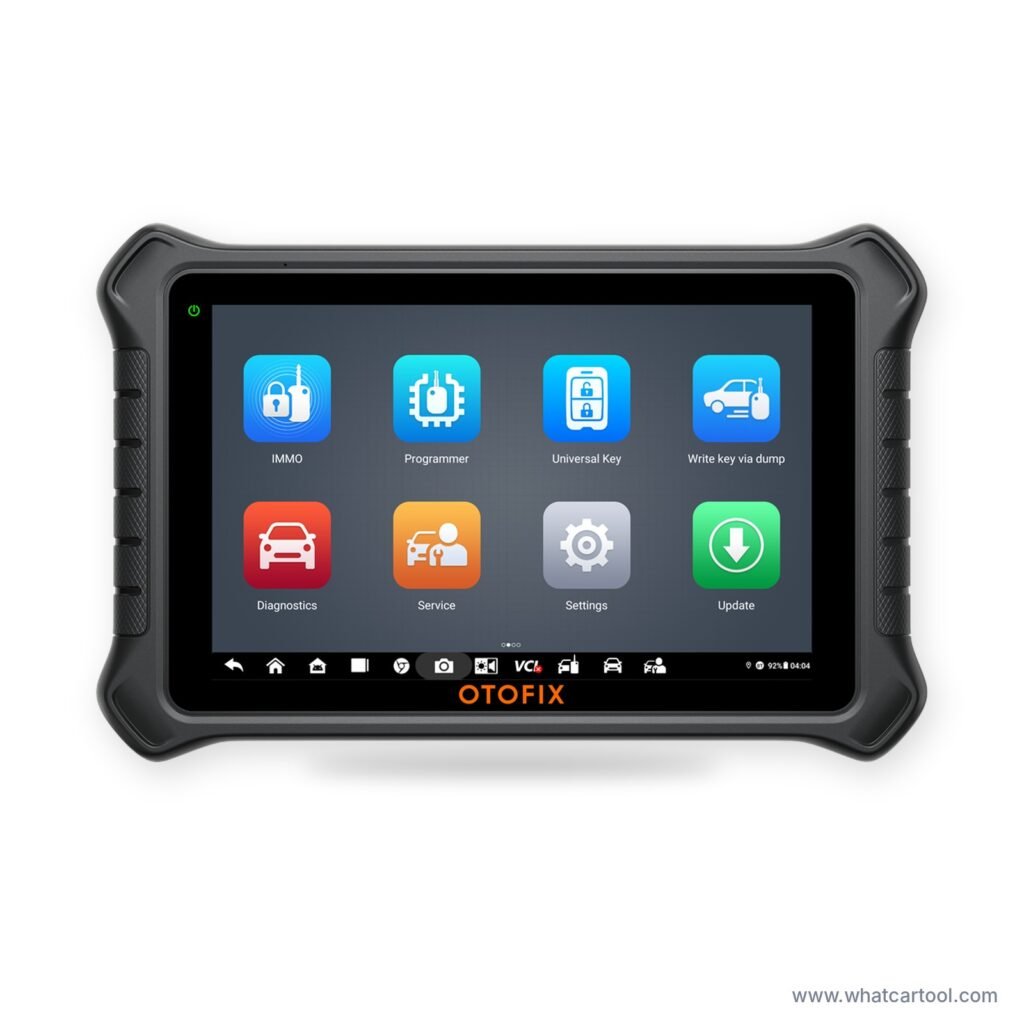

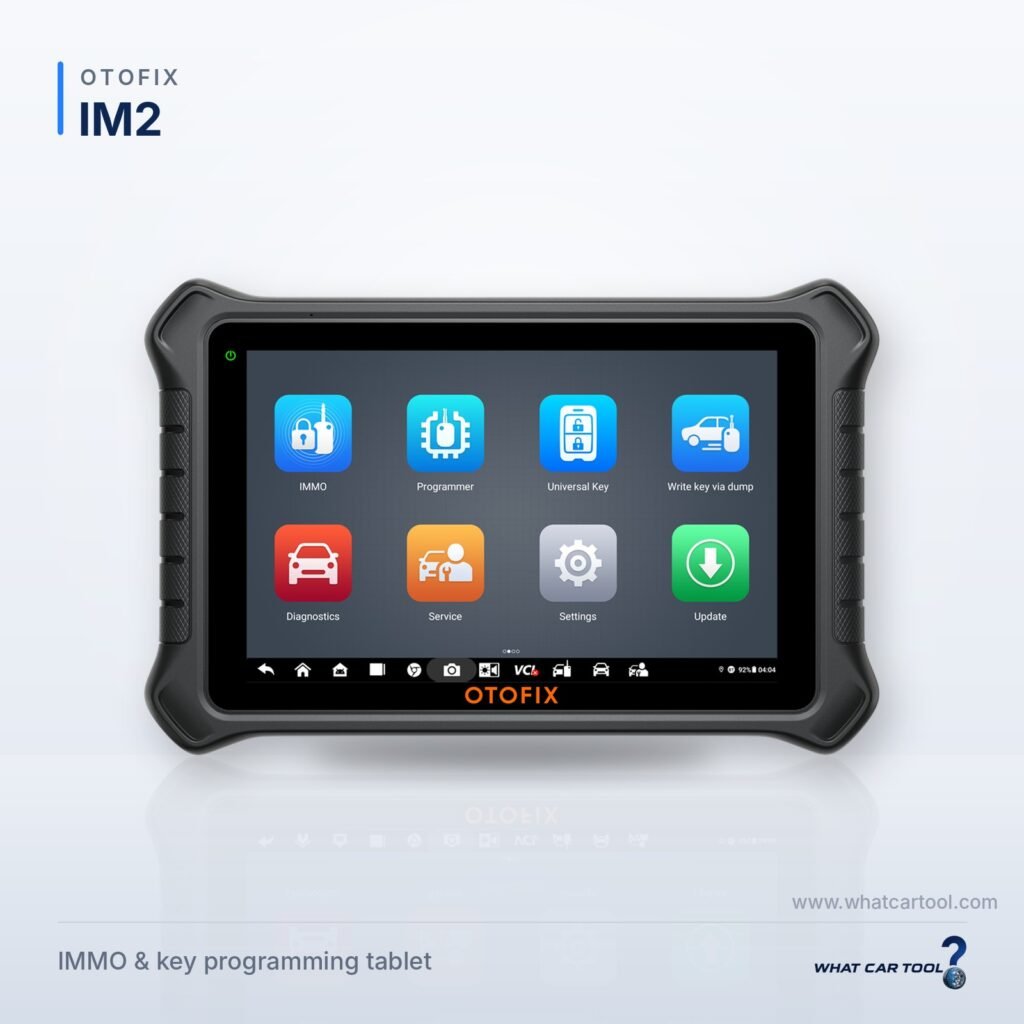

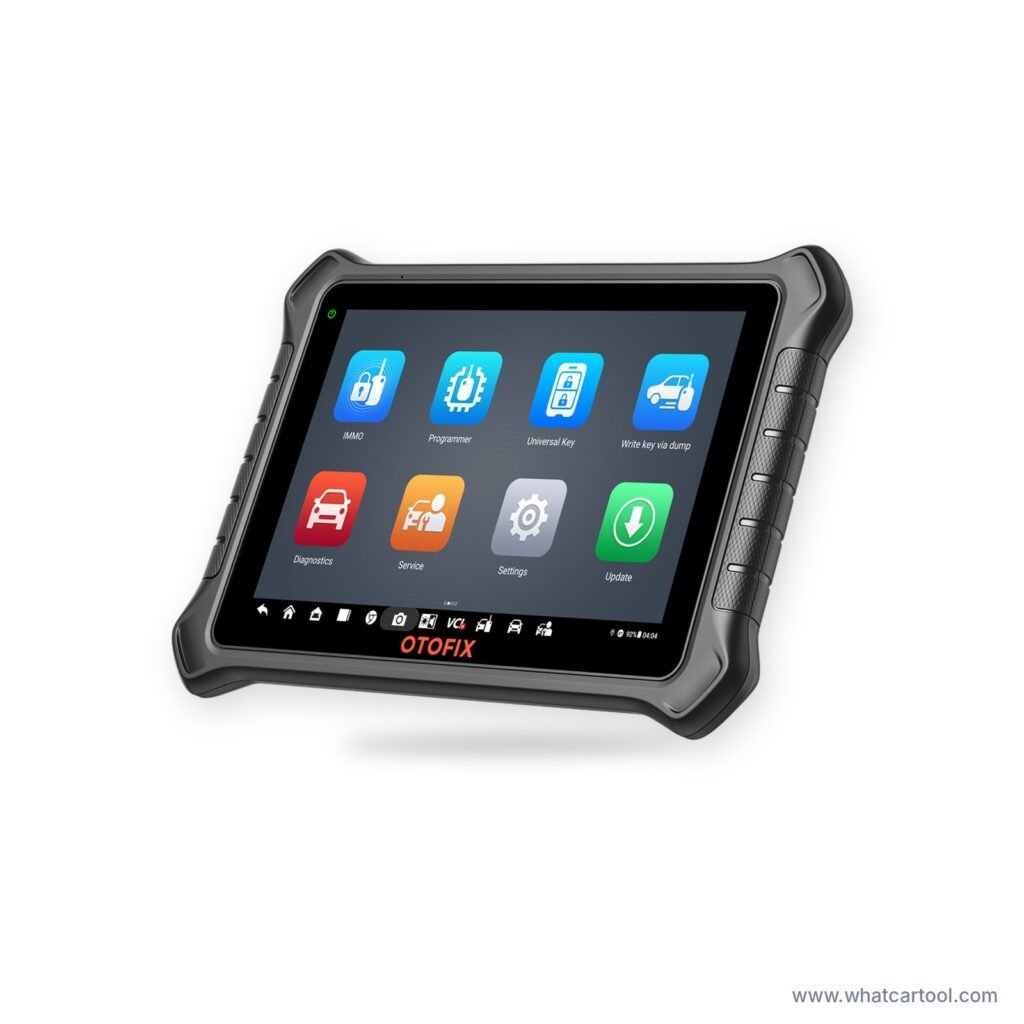

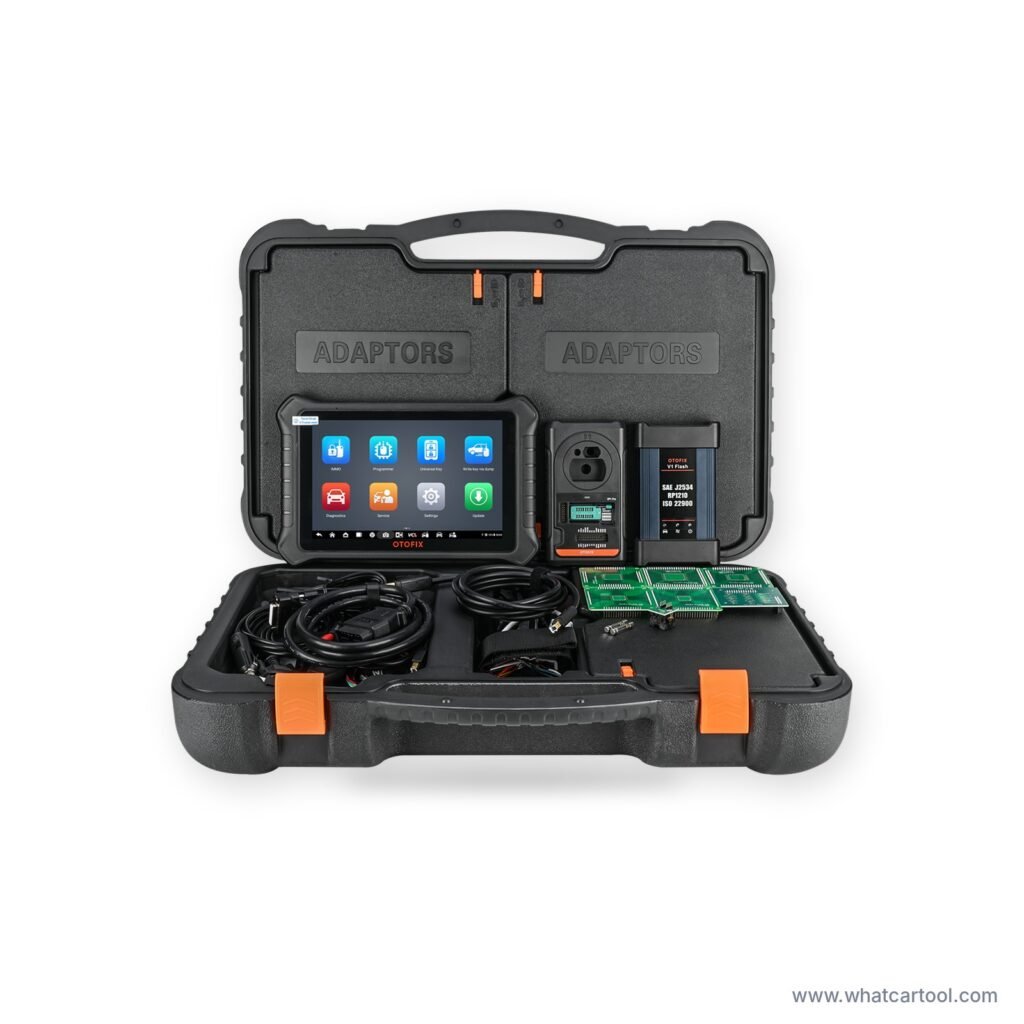

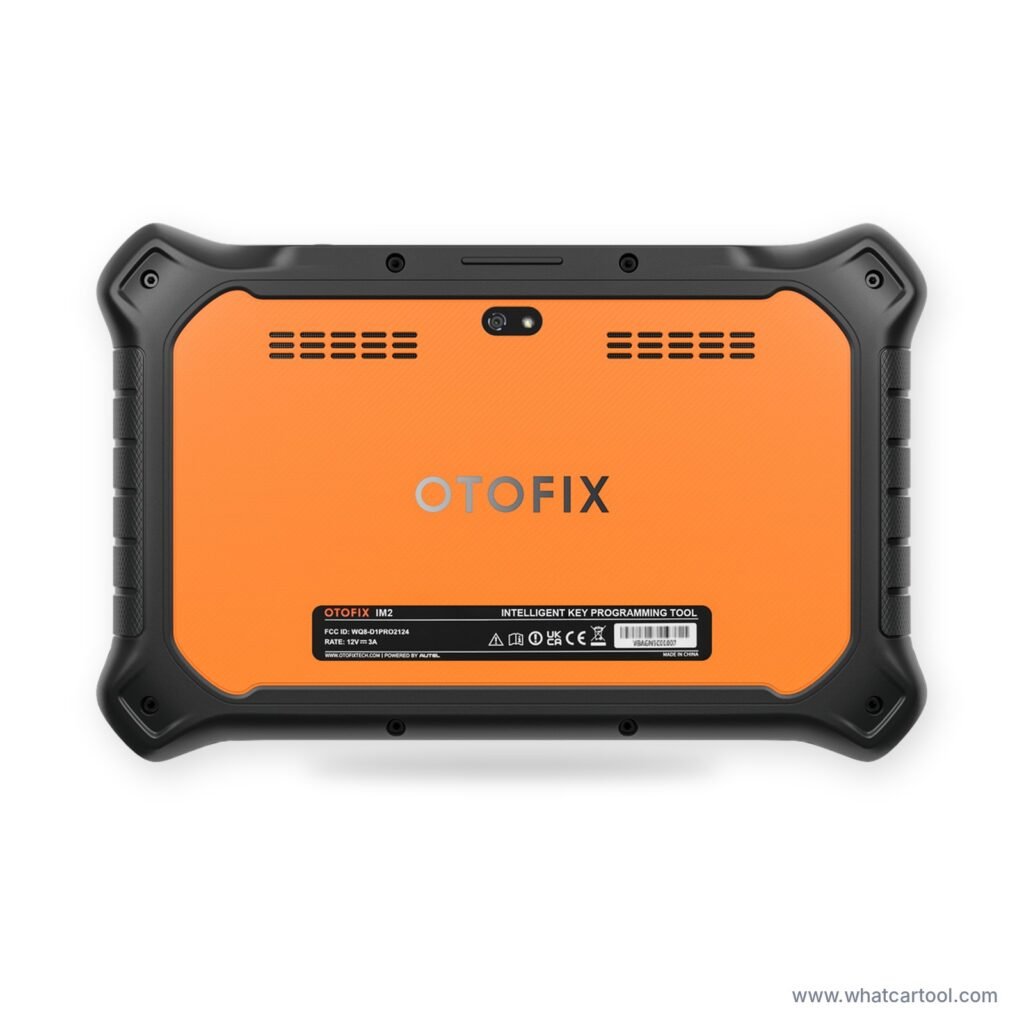

10.1" IMMO and key programming tablet with XP1 Pro programmer, coding and full-system diagnostics
Model code: IM2 Manufacturer: Otofix

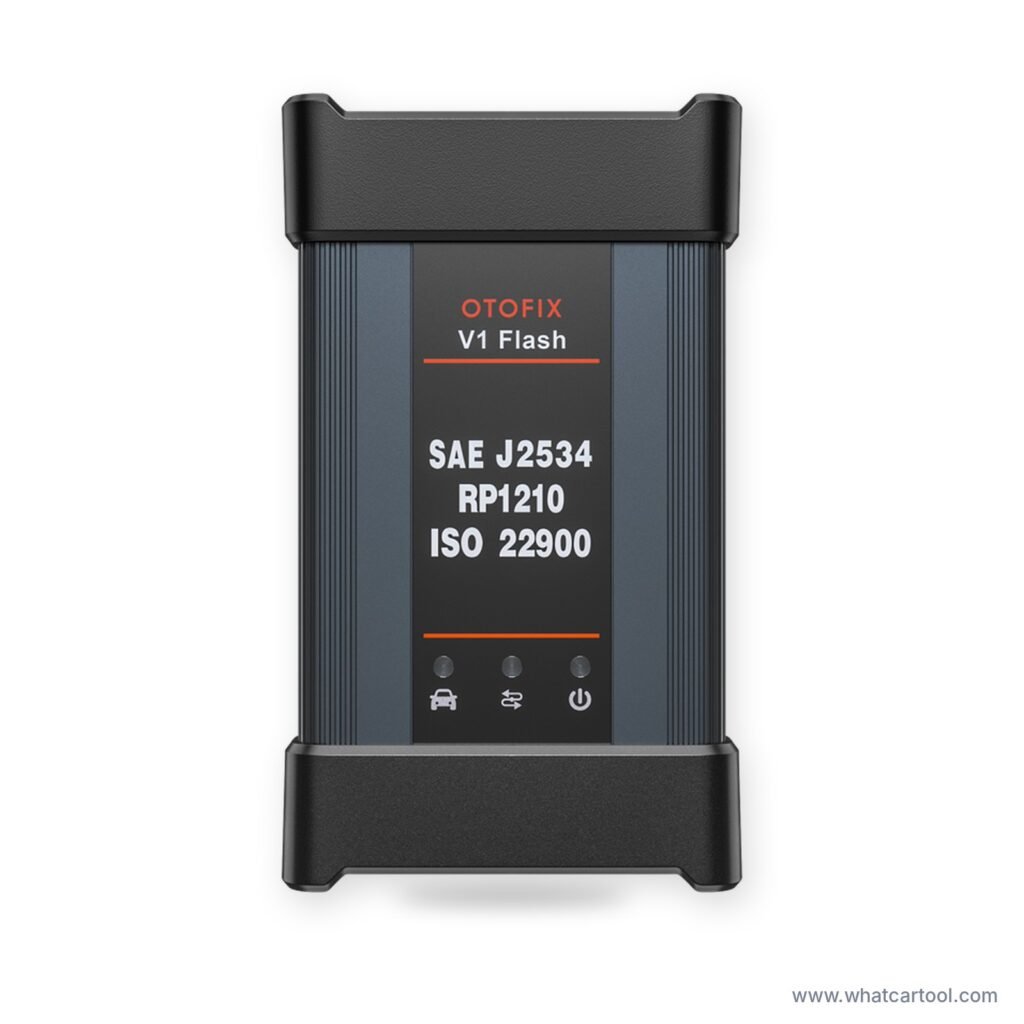

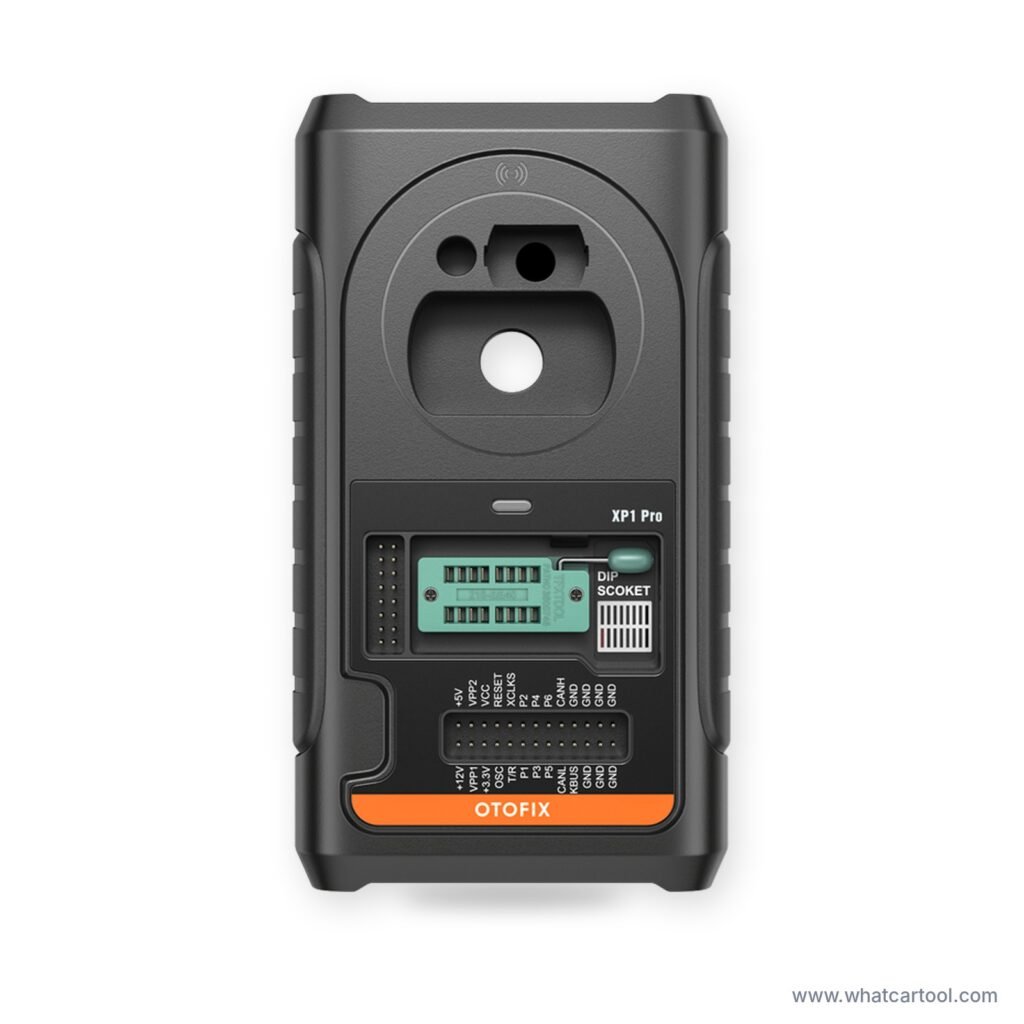

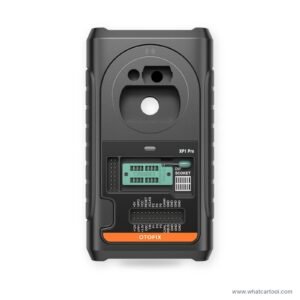

The OTOFIX IM2 is a 10.1-inch Android IMMO and key programming tablet with the V1 Flash VCI (SAE J2534, RP1210, ISO 22900) and the XP1 Pro programmer. IMMO coverage on 80+ makes, OBD key programming on about 90% of supported models: PIN/CS reading (incl. all keys lost), key generation, key learning, remote learning and activation, IMMO ECU reset/adaptation, refresh/coding, IMMO restore and data backup. Examples from OTOFIX: BMW FEM/BDC key learning, Mercedes infrared key generation, VW/Audi III/IV/V add key and AKL, MQB transponder changes, Audi Q5/A4/A5 2015-2017 PIN/CS. Built-in database shows chip type, frequency, key type and maximum number of keys. XP1 Pro reads/writes transponders, EEPROM, MCU, engine ECU and IMMO ECU data; chip simulation needs APB112; G-Box2/G-Box3 and IMKPA adapters optional.
Diagnostics: AutoVIN full-system scan, codes, live and freeze frame data, ECU information, active tests, 40 service functions, online and offline coding, hidden and guided functions (online coding and hidden functions not for Mercedes-Benz; guided functions not for Mercedes, BMW, JLR). DoIP and CAN FD need adapters. Remote expert and cloud report management.

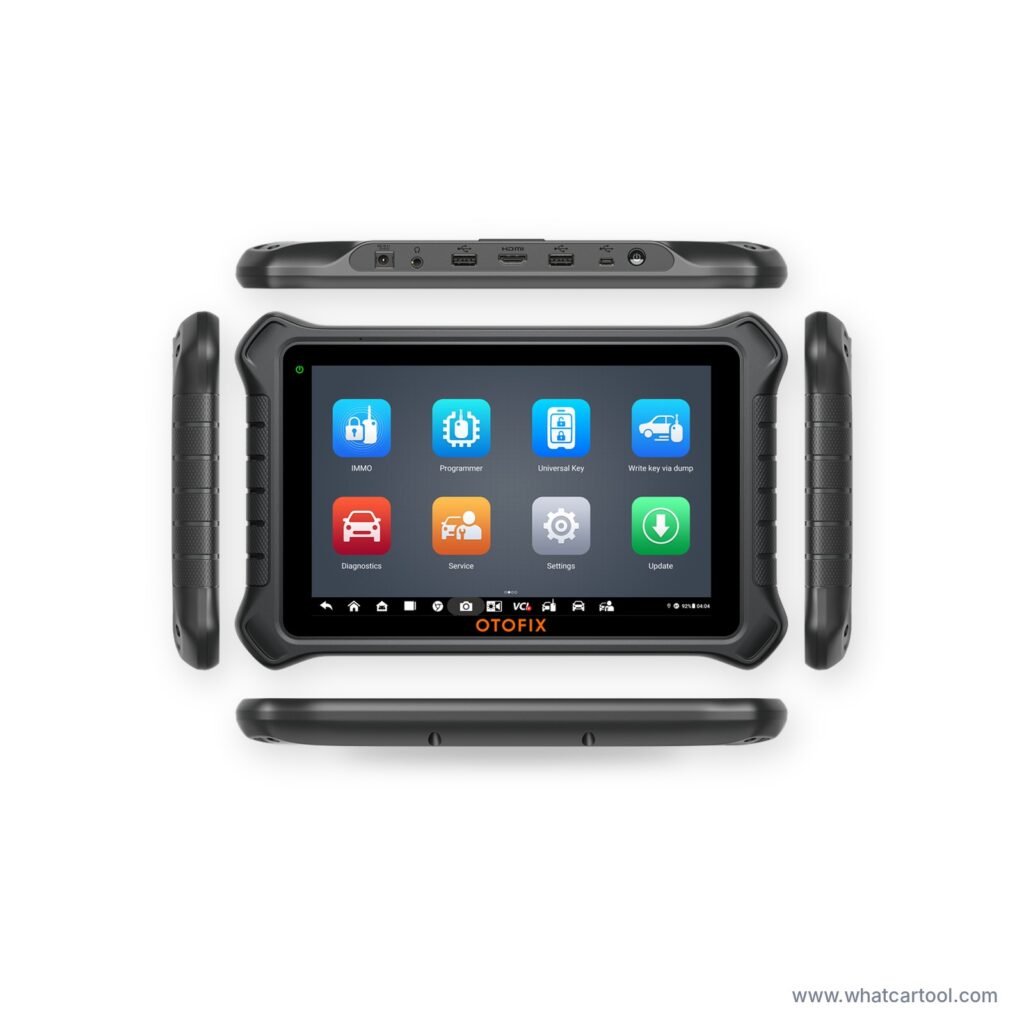

Hardware: Qualcomm SDM660 octa-core, Android 10, 4 GB RAM, 128 GB storage, 10.1" 1920x1200 screen, 15000 mAh battery, 16 MP camera, Wi-Fi 802.11ac, Bluetooth 5.0, 2x USB-A, mini USB, HDMI, SD card, 1.58 kg. Optional endoscope.
Key programming must only be used on vehicles you own or are authorised to work on. Vehicle coverage and functions depend on make, model, year, region and software version - check your VIN with OTOFIX (service@otofix.store) before buying. OEM software and licences are not included.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Cars |
| Connection with computer / tablet / phone | Bluetooth, Wi-Fi, USB |
| Other connection (details) | V1 Flash VCI; XP1 Pro via USB; HDMI |
| Vehicle power supply system | 12V |
| Supported protocols | CAN, J1979, J2534 standard API passthru, RP1210 API |
| Other protocols (details) | ISO 22900 (D-PDU); DoIP and CAN FD with adapters |
| Frequency of new updates | Regular online updates via Wi-Fi |
| Months of free updates | 24 |
| Annual cost (USD) | 539 |
| Subscription model (description) | 2 years of free software updates, no IP restriction (otofix.store). Renewal: OTOFIX IM2 One Year Update Service, USD 539 at otofix.store. |
| Menu language | English |
| Other language (details) | Multi-language (list not published) |
| Warranty (months) | 12 |
| Warranty details (optional) | OTOFIX one-year limited warranty |
No compatibility data yet.
OTOFIX IM2: diagnostics from the OTOFIX IM2 coverage list (same data as D1 Max2); key programming, all-keys-lost / IMMO part replacement and PIN reading from the OTOFIX IM2 (IMMO) list (OBD or on-bench; some models need the XP1 Pro programmer or APB112 / G-Box adapters). DoIP and CAN FD need adapters. Key programming only on vehicles you own or are authorised to work on. Dynapac construction equipment (CA / CC rollers): only basic diagnostics are entered - the OTOFIX list for Dynapac shows passenger-car functions that do not apply to these machines. Compatibility entered from the public OTOFIX Vehicle Coverage database (otofixtech.com, October 2026), summarised per make: a function is listed when OTOFIX shows it for at least one model of the make, so availability depends on model, year, engine and installed control modules - check your VIN with OTOFIX before buying. Very large makes were read up to 50,000 coverage rows, so rare functions of some models may be missing. Not entered: Chinese joint-venture / market versions (e.g. Beijing Hyundai, FAW-VW, SAIC-VW, Buick China) and Iranian makes. FCA vehicles 2018+ need your own paid AutoAuth account. OEM software and licences are not included.
